Pallet Rack System





Pallet Rack System



E System Sales, Inc. provides useful information affordable pricing, and online sales of regular duty and heavy duty Madix Pallet Racking for most all warehouse applications.

As the image shows above a pallet rack system of one or more pallet racks that contain two or more uprights to create what is known as a pallet rack system.  A pallet rack system aisle can be as long as need by adding pallet rack uprights and beams provided your warehouse has adequate space available. browse this website for all of the necessary components to create you new pallet rack system or call 800 619 9566 with your measurements and specs and we will accurately quote you on your pallet rack system needs.

Pallet Racking System Decks and Beams           Request a Quote

Light, regular and heavy duty beam configurations available in 36" 991.44 cm), 48" (121.92 cm),, 60" (152.40 cm), 84" (213.36) 96" 243.84 cm), 108" (274.32), 120" (304.80 cm), 132" (335.28) and 144" (365.76 cm).  Decking available in unfinished 2" 95.08 cm) dimensional lumber, high density particle board, or wire grid.
 - A variety of finishes and colors available - 2" 95.08) frame slotting on center spacing
- Deck load capacities up to 10,000 pounds on Heavy Duty Pallet Racking.
- Manufactured from heavy gauge high-tensile strength steel.

Rack Heights & Widths

Regular duty heights up to 144" (365.76 cm) and Heavy Duty heights up to 240" (609.60 cm).

Heavy pallet racking solution when substantial weights or handling equipment precludes the use of wide span.


Pallet Rack Wall Mount

Pallet Rack Wall Mount

The Pallet Rack Wall Mount Bracket, available in depths of 6", 8", 10" and 12", provides consistent spacing from frame to wall. Hardware pack includes bolts to secure the bracket to the frame.

This bracket is not recommended for use when local codes require seismic calculations.


Pallet Rack Leveling Shims

Pallet Rack Leveling Shims
Available in 10 packs consisting of five 12 gauge and five 16 gauge shims for use in leveling pallet rack systems.

Request a Quote

 Regular Duty and Heavy Duty Pallet Racking

Pallet Rack Locking

Pallet Rack Locking

`Pallet racking integral locking beams and angle floor anchors maintain stability and reduce the chances of possible disengagement.

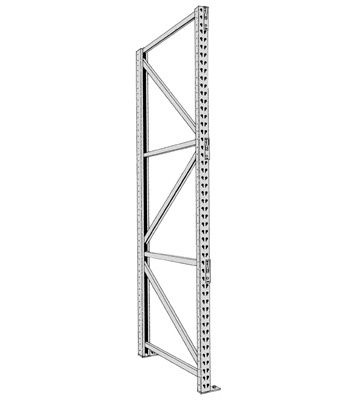

Regular Duty & Heavy Duty Pallet Rack Uprights

Regular Duty & Heavy Duty Pallet Rack Uprights

All Pallet Rack frames feature welded footplates, 2" on center beam adjustment, size availability to 48" wide and 192" high. Sahara or Blue-Gray are standard colors. Frame size should be chosen to allow a minimum pallet overhang of 2" front and 2" rear.

The Pallet Rack load capacity per frame is 26,000 LB. To preclude overturning, the frame depth x 6 cannot exceed the height of the topmost loaded beam pair, unless all the frames are properly anchored or braced externally.

Pallet Rack Regular Duty Decks

Pallet Rack Regular Duty Decks

Unfinished 2" dimensional lumber provides high load capacity. Use with ‘-2’ style beams only. Order by frame depth.

Pallet Rack Regular Duty Decks

Pallet Rack Regular Duty Decks
Economical 5/8" high density particle board for lighter loads or to prevent merchandise from falling. Not recommended where heavy pallets “scrape” the surface. Sealed decks have baked-on polymer wax finish to seal surface.

Pallet Racking Picture

Hypermaxi Rack System

Pallet Racking Picture

Pallet Racking Picture Pallet Rack Pricing

Pallet Rack Pricing

How to figure pallet rack pricing.  Lets figure you want an aisle of pallet racking 32' long X 8' High X 48" Deep to fit a normal sized pallet with regular duty pallet racking.  You will need 5 96' high pallet rack upright frames costing $99 each costing $495, next you will need 8 8' pallet rack beams costing $33 each costing $264, the entire section described above would cost $495 + $264 = $759, next you might want to consider some pallet rack shims and wall mount brackets.  For an exact quote call 800 619 9566.




Pallet Rack Uprights

Pallet Rack Upright

Height

Depth

Regular Duty Heavy Duty
72" 24" $107 $116
30" $109 $118
36" $111 $120
42" $113 $122
48" $115 $124
84" 24" $111 $121
30" $113 $122
36" $115 $125
42" $117 $127
  48"

$119

$129
  96" 24" $115 $127
  30" $117 $129
  36" $119 $131
  42" $121 $133
  48" $123 $135
  108" 24" $119 $132
  30" $121 $134
  36" $123 $136
  42" $125 $138
  48" $127 $140
120" 24" $130 $145
30" $133 $148
36" $135 $150
42" $138 $153
48" $141 $156
132" 24" $134 $150
30" $137 $150
36" $139 $156
42" $142 $158
48" $145 $161
  144" 24" $139 $157
  30" $141 $159
  36" $144 $162
  42" $146 $164
  48" $149 $167

168" 36" N/A $189
42" N/A $192
48" N/A $194

192" 36" N/A $202
42" N/A $204
48" N/A $207


Pallet Rack Beams & Supports

  Pallet Rack Beams are available in three heights for differing load capacities and feature choice of step depths to accommodate either 5/8" particle board decks or 2" dimensional lumber decking.

Beams are slotted in the step to accept the correct number of deck supports under decking.

Pallet Rack Beams & Supports

Pallet Rack Beams

Beam Length

Beam
Height

Price
36" 3 1/2" $28
5" $31
6" $33
48" 3 1/2" $28
5" $31
6" $33
60" 3 1/2" $31
5" $35
6" $38
72" 3 1/2" $34
5" $39
6" $42
84" 3 1/2" $38
5" $43
6" $51
96" 3 1/2" $40
5" $49
6" $51
108" 6" $56
120" 6" $60
132" 6" $62
144" 6" $69


Pallet Rack Deck Supports

Deck Supports are formed heavy gauge steel with tabs which fit into beam slots, providing support for regular duty decking or to tie beams together to prevent rotation of beams where heavy duty decking is used.

24" $7.40 36" $8.55
30" $7.95 42" $10.80
  48" $12.15



Pallet Rack Wire Grid Decks

Pallet Rack Wire Grid Decks

Frame Depth Frame Length Cost
24" X 24" $23.00
36" $27.00
48" $41.00
30" X 24" $26.00
36" $30.00
48" $35.00
36" X 24" $28.00
36" $33.00
48" $39.00
42" X 24" $30.00
36" $36.00
48" $42.00
48" X 24" $32.00
36" $39.00
48" $47.00
